Vericube

MATRIX CODE VERIFICATION SYSTEM

The REA VeriCube is a state-of-the-art matrix and barcode verification device which can be used across all industry sectors. Whether lying, standing or from top to bottom, virtually any test sample can be measured contact-free in the optimum measuring position.

The measurement of optical codes in compliance with defined angles, distances and lighting allows accurate and reproducible measurement results and quality evaluations.

The measuring system is based on a high-precision optical module with a CMOS camera chip. The system is designed to avoid ambient light influences during the measurement process.

With the REA VeriCube you can quickly find out how to improve the read rate of the tested codes. Optimize the print quality of your codes by utilizing detailed measurement results.

Universal, stationary 2D code verification device

High-quality aluminium housing, powder-coated, lacquered with glass cover

Multilingual user interface and reports

For ease of use, settings can be stored in customized profiles for fast selection

Easily removable and exchangeable transparent cover plate

Network-compatible PC evaluation software TransWin32 for Windows (multiuser capable)

Key panel with on/off, Scan and 3 customizable – function keys.

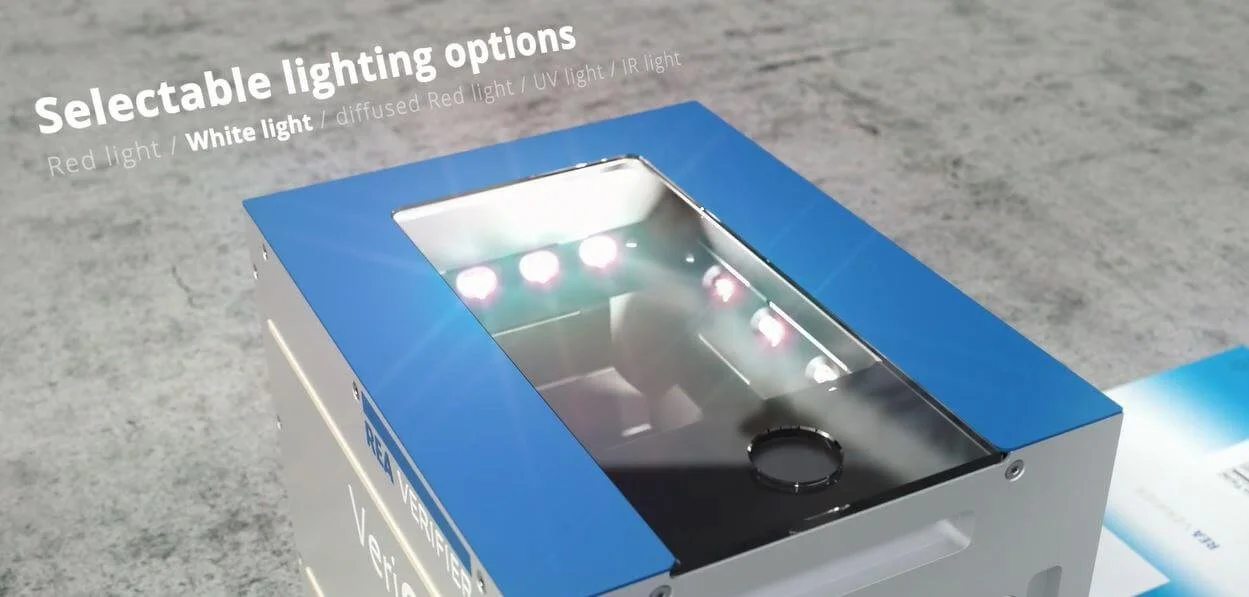

Selectable illumination (red or white light, diffused red light, UV light, IR light)

Darkened measuring chamber to avoid ambient light influences

Red LED light 660nm or white LED light 4.000 °K, optional IR 840 mm, 950 mm, UV 365 mm

Illumination angle 45°, red or white light n Status LEDs for scan and light source selection

Data structures and code properties:

GS1 data structures (GS1DataMatrix, GS1-QR-Code, GS1-128, GS1 Data bar, Composite)

ISO/IEC 15418 / ANS MH10.8.2 data structures (AIAG, Odette, VDA, EDIFICE, HIBC, DOD, UPU …)

EFPIA and PPN support for pharmaceutical industry

Check digit control settings

Size control settings

Customizable date verification

Designed to operate in 3 positions to meet different measuring requirements: sidewise, in upright position and upside down, optional with tripod. Capable of measuring DPM codes (direct part marking

Contact-free measurements by a CMOS camera

Easy exchangeable camera modules to adapt to different code sizes

Exchangeable camera module, resolution 2592 x 1944 pixel

Camera focus and aperture pre-adjusted by factory
