UDAFORMAXX

The offline coding system is fully compliant, efficient and future proof.

  • 21 CFR Part 11 Compliant- Corporate authentication login.
  • Fully Guarded- Including safety lock
  • Secure- Encrypted Microsoft SQI Server Database
  • Product Counter- Ensure only print what is required
  • High Quality- Human and machine-readable batch codes
  • Size Adjustment- Overprint different carton sizes on single machine
  • Multiple Extras- Printers, Cameras and Upgrade variants

Option 1:

P21 BASE SYSTEM

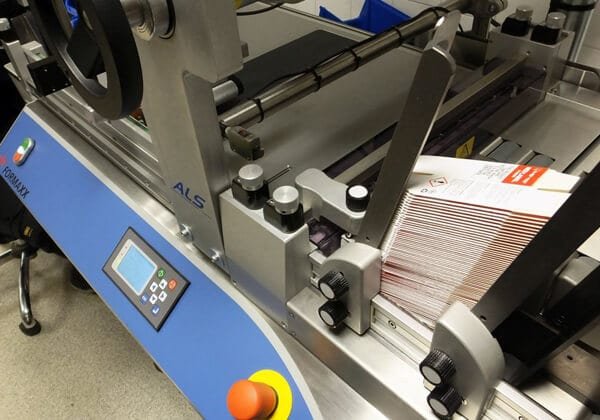

The P21 Plus Pharma is a fully guarded carton feeding and code reading- 21 CFR Part 11 compliant system, with integrated Thermal Inkjet Printer and Inspection System for verification of 1D and 2D machine readable codes.

The touch screen interface of the P21 allows for single batch setup of the entire system. The P21 Plus allows for an selection of pre-programmed templates and the data to be printed can be automatically linked to the batch number, current date or manually entered as required.

P21 Plus Pharma is ideal, yet not limited to the following applications:

  • Flat Boxes
  • Blank Cartons
  • Blister Packs
  • Labels
  • Single Sheet
  • Sleeves
  • I SO Cards

The machine allows for a number of different carton sizes and template layouts to be present into the system.
P21 Plus ensures that the line will only print what is required. allowing for codes to be printed just in time or in advance.

Option 2:

P21 PLUS WITH DATABASE

  • Batch Information to be prepared and maintained remotely.
  • SQL Database installed on customer network.
  • Website login controlled by users’ permissions.
  • Under the correct permission settings, the user can add batch and product information to Database via website.
  • Database allows for batch records to be updated automatically during processing.
  • The user can simply select the batch from a pre-programmed dropdown list on P21 Plus Pharma interface on the machine.
  • Powered by InterVision Global’s unique software- PERCEPTOR.

SERIALISATION

PERCEPTOR is an intuitive operator interface that runs on a central processing unit that gives the operator visibility on all the running sub systems to view the systems run-state, performance and statistics as well as carry out troubleshooting and diagnostics.

The system can connect to a third-party serialization and aggregation software.

P21 PLUS FAILSAFE FEATURE

As the product is transported through the system, there will be an automated visual inspection and collating to accept or reject the product from the line.

The system has a reject verification system, which will clarify the product has been rejected from the line- if it has not made the reject bin, the system will stop and notify the user.

P21 PLUS GUARDING

Full machine guarding and interlocking technology throughout the whole system.

The Guard cannot be lifted whilst the machine is processing.

21 CFR requirement (Food and Drug Administration’s (FDA) guidelines on using electronic records and electronic signatures).

COGNEX INSIGHT 8404 SERIES

The world’s smallest, full line, standalone vision system available in VGA, 1MP, 2MP and 5MP resolutions.

Powerful vision tool library including new  PatMax RedLine™ and color ID tools.

Step by step application setup with EasyBuilder, and flexibility of added control with spreadsheet and scripting.

High Speed communication with Gigabit Ethernet.

Fast acquisition VGA, 1MP and 2MP cameras.

Built in IO 1 dedicated trigger in, 2 high speed outputs (including strobe). Additional IO available via external IO modules: CIO-MICR.

WOLKE M610 TOUCH THERMAL INKJET

The Wolke m610 touch thermal inkjet (TIJ) printer is the ideal coding and marking solution.

The m610 touch has the capability to print a wide range of codes on fast production lines.

Automatic Cartridge setup.

Wide range of applications from serialisation to date and lot coding.

Full downloadable font support using TrueType® fonts.

Automatic calculations of Expiry Dates.

Auto incrementing/decrementing text and counters Multiple graphics formats supported (up to maximum print area).
